Description

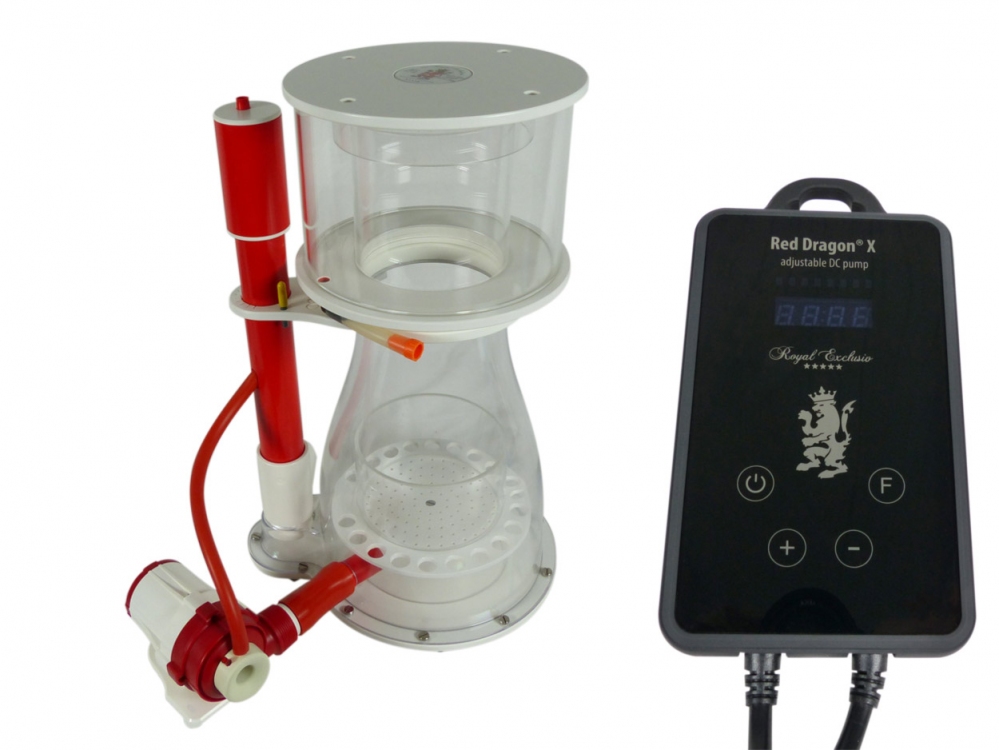

Bubble King Double Cone 250
for aquariums up to 1.500 liter
hard facts Bubble King® Double Cone 250 RDX:
2.500 l/h Air – 6.500 l/h Water = 1 Pump RD X 6500 DC 24V
Base plate: 30 cm x 37 cm / height ~ 59 cm
Water level: ~ 200 mm up to ~ 250 mm
Weight skimmer: 7,5 kg inclusive pump
Technical data Bubble King® Double Cone 250 RDX:
Skimmer-pump: Red Dragon® X 6500
Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Dimension skimmer without pump:
300 mm wide / 370 mm length / ~ 590 mm height
Dimension skimmer with pump:
320 mm wide / 510 mm length / ~ 590 mm height
FOLLOWING ASAP Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
Red Dragon® X pump 60Watt 2.500 l/h
Technical data Red Dragon® X pump 60 Watt / 2.500 l/h air intake:
Skimmer-pump: Red Dragon® X 6500
Delivery rate: 500-2.500 l/h Air inlet ~ 600-6.500 l/h Water inlet
wattage power: Pmax = 60 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from ~ 8W up to 63W
Operating voltage: 100-240 Volt 50-60 Hz (24V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 45 mm
Dimension pump: 90 mm wide / 150 mm length / ~ 130 mm height
Dimension control unit: 30 mm wide / 95 mm length / ~ 105 mm height
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
