Beschrijving
for aquariums up to 375 liter

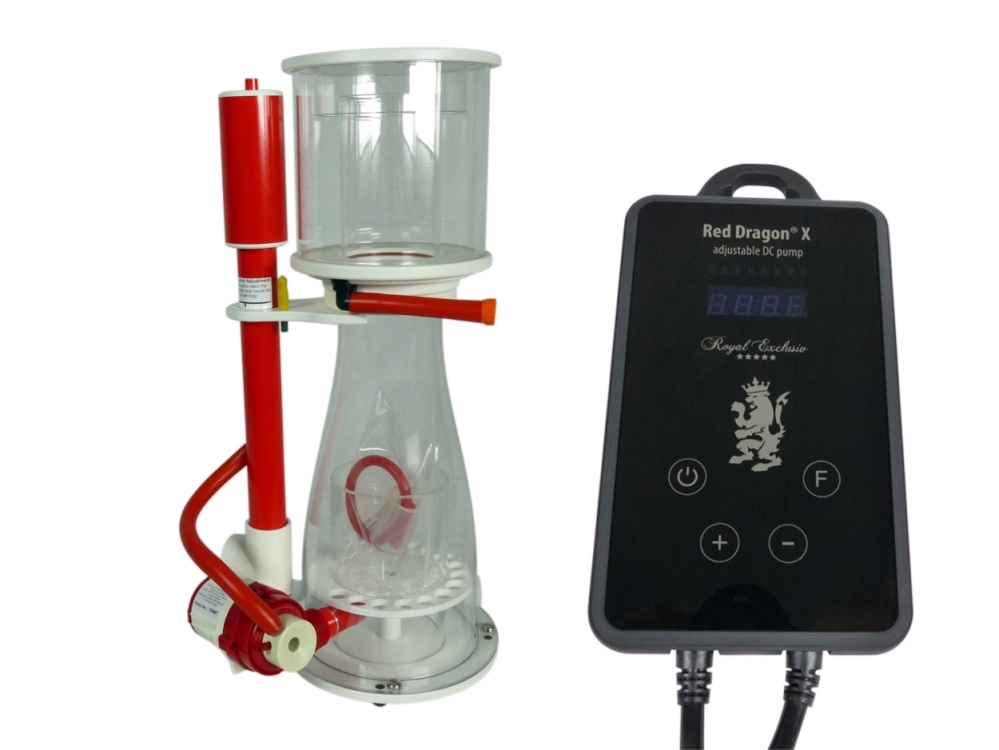

hard facts Bubble King® Double Cone 150:
max. 750 l/h Air – 3.500 l/h Water = 1 Pump RD X 3000 DC 12V
Base plate: 19,5 cm x 24,5 cm / height ~ 50 cm
Water level: ~ 150 mm up to ~ 200 mm
Weight skimmer: 5 kg inclusive pump
Technical data Bubble King® Double Cone 150:
Skimmer-pump: Red Dragon® X 3000
Delivery rate: 200-750 l/h Air inlet ~ 300-3.500 l/h Water inlet
wattage power: Pmax = 30 Watt/h
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from ~ 7W up to 30W
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 0,6 kg
Height of intake side: center 45 mm
Dimension pump: 80 mm wide / 130 (120 without inlet protection) mm length / ~ 110 (135 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
RDX Skimmer Pump – Operating_and_maintenance_manual.pdf
- Saltwater resistant M4 grade 2 titanium screws
- Saltwater resistant parabolic rubber feet for acoustic decoupling
- Extreme low noise brushless DC-delivery pump with external power electronics
- High efficient technology, Sine Wave for very quiet running
- Inlet and Outlet complete with DIN connection, compact dimensions
- Easy usage and maintenance, low risk of calcification
- compact design against vibrations and oscillation
- CE conformity, developed and built
- high quality touchscreen display with feeding function
(protection against dry-running, over heating, over voltage, blocking etc.) - included in the scope of delivery:
- Pump with 2m supply line
- Controller with 1,5m supply line
- Power plug with 1,5m supply line / rubber connector
- Nozzle with Air- and Ozone connection
- Manual German/English
Dimension skimmer without pump:
195 mm wide / 245 mm length / ~ 505 mm height
Dimension skimmer with pump (90° to the torque tube):
245 mm wide / 260 mm length / ~ 505 mm height
Dimension skimmer with pump (compared the torque tube):
195 mm wide / 310 mm length / ~ 505 mm height
Weight skimmer: 5 kg inclusive pump
Data_sheet_and_spare_parts.pdf Operating_and_maintenance_manual.pdf
The skimmer has default 2 pump connection options.
